Half Mirror Glass Coating

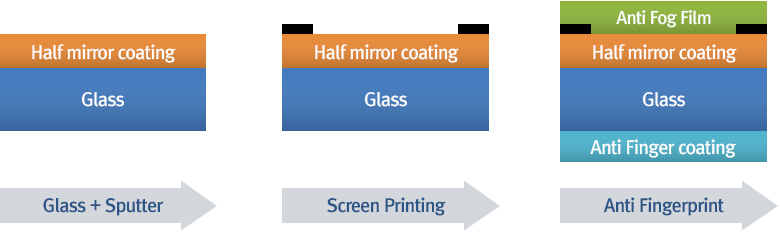

Enable to apply the mirror display coating technology based on dielectric multi-layer coating with absorption loss, which displays the image when the display panel is operated and functions as mirror when the display panel is not operated

Applications

Specifications

Description		Specifications
Glass size	inch	32” / 49” / 55”
Transmission Characteristics	380-780nm	40% / 50% / 60%
Reflection Characteristics	380-740nm	60% / 50% / 40%
Reflection Color	a*	2.5 ± 3.0
Reflection Color	b*	-1.0 ± 5.0
AF Characteristics	Contact Angle	≥ 110 ˚
